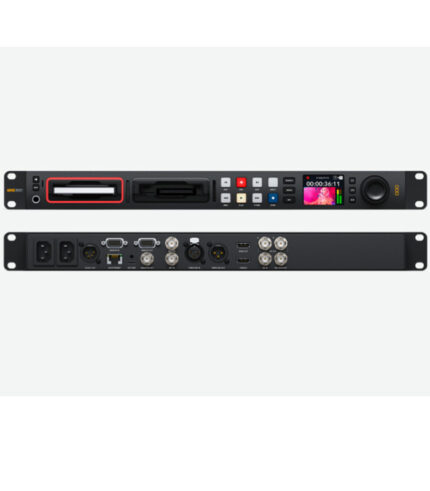

BLACKMAGIC HYPERDECK STUDIO HD PRO – BMHYPDCKSTUDHDPRO

The Blackmagic HyperDeck Studio HD Pro is a professional broadcast recorder and playback deck designed for television production, live events, studio environments, post-production facilities, houses of worship, corporate video production and other professional media workflows. Built in a full-width 1RU rackmount chassis, the HyperDeck Studio HD Pro combines broadcast-style controls, high-quality recording and playback, SDI and HDMI connectivity, professional timecode connections and flexible media options in one powerful solution.

The HyperDeck Studio HD Pro provides two SSD slots and two SD card slots, giving production teams multiple options for recording and media management. Its professional design makes it suitable for applications where reliable recording, precise playback control and easy integration with existing broadcast equipment are essential.

Professional Broadcast Recording and Playback

The Blackmagic HyperDeck Studio HD Pro is designed to provide familiar deck-style operation while supporting modern digital production workflows. Its front panel includes dedicated transport controls and a precision-machined metal search dial with an electronic clutch.

Operators can use dedicated controls for jog, shuttle and scroll functions, making it easier to locate specific points in recorded material. The built-in 2.2-inch LCD provides video, audio and timecode monitoring as well as access to system menus.

Dual SSD and Dual SD Media Slots

One of the major advantages of the HyperDeck Studio HD Pro is its flexible media configuration. The unit features two SSD slots as well as two SD card slots, allowing users to work with different types of storage media depending on the production requirements.

The dual SSD design provides convenient high-capacity recording and playback options, while the SD card slots make it easy to move media between compatible HyperDeck Studio models. LED indicators around the media slots provide clear recording and playback status information.

6G-SDI and HDMI Connectivity

The HyperDeck Studio HD Pro offers professional connectivity for broadcast and video production systems. It includes one SDI input, two SDI outputs and one SDI monitor output, supporting SDI data rates from 270 Mb/s through 6G-SDI.

It also provides HDMI 2.0 input and output, making it possible to connect HDMI-compatible cameras, displays and other production equipment. The combination of SDI and HDMI connectivity makes the recorder adaptable to a wide range of studio, event and broadcast setups.

Professional Audio Support

For professional audio workflows, the HyperDeck Studio HD Pro supports embedded audio through its SDI and HDMI connections. It supports up to 16 channels of embedded SDI audio and up to 8 channels of embedded HDMI audio.

A front-panel 6.35 mm headphone output allows operators to monitor audio directly from the deck, while the built-in mono speaker provides convenient basic audio monitoring.

Professional Timecode and Reference Connections

Accurate synchronization is essential in professional broadcast and production environments. The HyperDeck Studio HD Pro includes dedicated XLR timecode input and output connections, providing professional timecode integration with compatible production equipment.

The recorder also includes BNC reference input and output supporting Tri-Sync and Black Burst. This allows the HyperDeck to synchronize with an external reference source or distribute reference signals to other compatible equipment.

Remote Control and Network Connectivity

The Blackmagic HyperDeck Studio HD Pro can be integrated into professional control environments using RS-422 remote control, with dedicated input and output connections.

It also features 1Gb/s Ethernet and supports the Blackmagic HyperDeck Ethernet Protocol. This enables network-based configuration and control, while remote FTP file upload support can help streamline media workflows in suitable production environments.

USB-C Computer Connectivity

The HyperDeck Studio HD Pro includes a USB Type-C 3.0 connection supporting speeds up to 5 Gb/s. The USB-C interface can be used for external drive recording, webcam output, software configuration and system updates.

This makes the recorder useful beyond conventional broadcast recording, providing additional flexibility when integrating the HyperDeck into computer-based production workflows.

Key Features of Blackmagic HyperDeck Studio HD Pro

• Full-width 1RU rackmount professional recorder
• Two SSD media slots
• Two SD card slots
• One SDI video input
• Two SDI video outputs
• One SDI monitor output
• 6G-SDI support
• HDMI 2.0 input and output
• 2.2-inch LCD display
• Built-in mono speaker
• 6.35 mm headphone output
• 16 channels of embedded SDI audio
• 8 channels of embedded HDMI audio
• XLR timecode input and output
• BNC reference input and output
• Tri-Sync and Black Burst reference support
• RS-422 remote control input and output
• 1Gb/s Ethernet
• USB Type-C 3.0 connectivity
• Blackmagic OS
• Blackmagic HyperDeck Setup software
• Professional jog, shuttle and scroll controls
• Machined metal search dial with electronic clutch
• Support for SD and HD video standards
• Support for Ultra HD and 4K DCI playback/recording formats at supported frame rates
• Internal 100–240V AC power supply
• 12V DC power input through 4-pin XLR
• Maximum power consumption of 100W
• 0°C to 40°C operating temperature range

Ideal Applications

The Blackmagic HyperDeck Studio HD Pro is suitable for a variety of professional video applications. Television stations can use it for broadcast recording and playback, while production companies can integrate it into studio and post-production workflows.

It can also be used for live event production, conference recording, sports production, houses of worship, corporate video, educational institutions, digital signage and professional AV installations. Its combination of SDI, HDMI, timecode, reference synchronization and network connectivity makes it particularly useful where multiple pieces of professional video equipment need to work together.

Why Choose the Blackmagic HyperDeck Studio HD Pro?

The HyperDeck Studio HD Pro brings the familiar operation of a traditional broadcast deck into a modern file-based workflow. Its large rackmount design provides room for professional connections and dual SSD and SD media storage, while the dedicated transport controls make everyday operation straightforward.

For production teams looking for a professional HD recorder with 6G-SDI, HDMI, SSD and SD media support, timecode, reference synchronization and network connectivity, the HyperDeck Studio HD Pro provides a comprehensive recording and playback platform.
