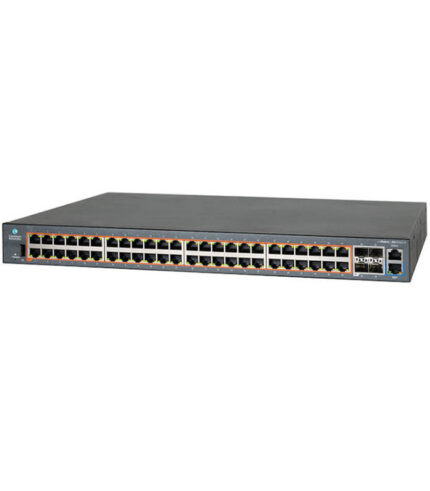

Cambium cnMatrix EX2052-P Managed PoE+ Switch

The Cambium cnMatrix EX2052-P is a high-performance, fully managed enterprise switch designed for organizations that need reliable wired connectivity, intelligent network management, strong access security, and Power over Ethernet (PoE+). With 48 Gigabit Ethernet PoE+ ports and 4 × 10GbE SFP+ uplink ports, it provides a flexible foundation for connecting computers, IP phones, wireless access points, IP cameras, and other network devices.

The EX2052-P delivers 176 Gbps switching throughput and a 120 Mpps forwarding rate, using a non-blocking, line-rate architecture for demanding business networks. Cambium’s cnMatrix platform also combines wired switching with centralized cnMaestro management, policy-based automation, automated device profiling, and network segmentation.

Powerful 48-Port Gigabit PoE+ Connectivity

The Cambium cnMatrix EX2052-P provides 48 × 10/100/1000 Mbps Ethernet ports, with all 48 access ports supporting IEEE 802.3af/at PoE+. Each PoE+ port can deliver up to 30W, allowing compatible devices to receive both network connectivity and electrical power through a single Ethernet cable.

This makes the switch particularly suitable for environments with numerous powered endpoints. Instead of installing separate power adapters for every compatible device, network administrators can use structured Ethernet cabling from the switch to the endpoint.

Ideal for Business-Critical Devices

The EX2052-P can be deployed to connect and power:

• Wi-Fi access points
• IP surveillance cameras
• VoIP and IP phones
• Networked computers and workstations
• Wireless infrastructure
• IoT and smart network devices
• Other compatible PoE-powered equipment

Its 48-port capacity is especially useful for offices, schools, hotels, commercial buildings, healthcare facilities, and other organizations with a high density of Ethernet-connected devices.

4 × 10GbE SFP+ Uplink Ports

For high-speed backbone and aggregation connectivity, the cnMatrix EX2052-P includes four SFP+ uplink ports. These interfaces support 10GbE connectivity, providing substantially more bandwidth for connecting the switch to core switches, servers, storage systems, or other network infrastructure.

The combination of 48 Gigabit access ports and four 10GbE uplinks gives network designers considerable flexibility when building high-capacity enterprise networks.

Intelligent Managed Switching with Layer 2 and Layer 3 Capabilities

The cnMatrix EX2052-P is more than a basic Ethernet switch. It is a fully managed Layer 2 and Layer 3 switch with features designed for structured enterprise network deployments. Cambium specifies support for VLANs, Quality of Service, access control, routing capabilities, multicast functions, and other advanced networking features.

The switch supports up to 4,000 simultaneous VLANs, 64 static routes, dynamic routing capacity, 64 Layer 3 interfaces, and 16K MAC addresses. These capabilities allow the EX2052-P to accommodate segmented and growing business networks.

Policy-Based Automation

One of the major advantages of the cnMatrix platform is Policy-Based Automation (PBA). Rather than relying entirely on repetitive manual configuration, administrators can use centralized policies to simplify device deployment and ongoing network changes.

This helps reduce configuration errors while making it easier to maintain consistent network policies across multiple switches and sites.

Centralized cnMaestro Network Management

The Cambium cnMatrix EX2052-P integrates with cnMaestro for centralized cloud or on-premises management. This allows network administrators to simplify deployment, monitoring, configuration, and policy management from a centralized platform. Cambium also highlights zero-touch deployment, automated device profiling, segmentation, and unified wired-wireless management as key cnMatrix capabilities.

Zero-Touch Deployment

Zero-touch deployment can significantly reduce the time required to install switches across multiple locations. Instead of manually configuring every device from scratch, administrators can apply predefined configurations and policies through centralized management.

This is particularly valuable for businesses operating multiple branches, campuses, offices, or distributed network sites.

Enhanced Network Security

Security is another important strength of the EX2052-P. The switch supports features such as 802.1X authentication, DHCP snooping, RADIUS/TACACS+, access control lists, and automated device profiling and segmentation.

These capabilities can help organizations control network access, separate different categories of devices, and apply appropriate security policies to users and endpoints.

For example, IP cameras, employee computers, guest devices, VoIP phones, and wireless access points can be managed using appropriate network segmentation policies rather than placing every device on the same network.

Quality of Service for Voice, Video and Data

Enterprise networks frequently carry different types of traffic with different performance requirements. The EX2052-P supports Quality of Service features including priority queues and traffic classification using technologies such as 802.1p CoS and DSCP.

This makes the switch well suited to environments where voice, video surveillance, wireless traffic, and ordinary data applications share the same network infrastructure.

Key Features of Cambium cnMatrix EX2052-P

• 48 × 10/100/1000 Mbps Gigabit Ethernet ports
• 48 PoE+ enabled ports
• IEEE 802.3af/at PoE+ support
• Up to 30W PoE+ power per port
• 4 × SFP+ 10GbE uplink ports
• 176 Gbps switching throughput
• 120 Mpps forwarding rate with 64-byte packets
• Fully managed Layer 2 and Layer 3 switching
• Non-blocking, line-rate architecture
• Policy-Based Automation
• Zero-touch deployment support
• cnMaestro cloud and on-premises management
• Automated device profiling and segmentation
• 802.1X authentication
• DHCP snooping
• RADIUS/TACACS+ support
• Quality of Service with DSCP and 802.1p
• Up to 4,000 simultaneous VLANs
• 16K MAC address table
• 128 MB flash storage
• 512 MB DRAM
• USB and serial console management
• Out-of-band management port
• Rack-mount installation support
• Energy-Efficient Ethernet

The current Cambium specifications confirm that the EX2052-P has 48 Gigabit ports, four SFP+ uplinks, 128 MB flash, 512 MB DRAM, 1.5 MB packet buffer, and three internal fans.

Where Can the Cambium EX2052-P Be Used?

The Cambium cnMatrix EX2052-P managed PoE+ switch is suitable for a broad range of professional networking applications. In an office environment, it can connect workstations, IP phones, printers, access points, and other Ethernet devices while supplying PoE+ power where required.

For surveillance installations, its PoE+ ports can simplify the deployment of compatible IP cameras by carrying power and data through Ethernet cabling. In wireless deployments, the switch can provide connectivity and PoE+ power to compatible Cambium or third-party access points.

It can also serve as an access or aggregation switch in schools, hotels, hospitals, commercial buildings, campuses, and other organizations requiring centralized network control.

Why Choose the cnMatrix EX2052-P?

The biggest advantage of the EX2052-P is the combination of high port density, PoE+, 10GbE uplinks, intelligent management, automation, and security features in one enterprise-class platform.

For organizations looking to reduce manual configuration and simplify network operations, cnMatrix provides tools that can make deployment and ongoing administration more efficient. The 10GbE uplinks also provide a practical path for connecting the switch to higher-capacity network infrastructure as traffic demands increase.

Buy Cambium cnMatrix EX2052-P in Kenya

Looking for a reliable Cambium cnMatrix EX2052-P 48-port PoE+ managed switch in Kenya? Neriahtech Computers Ltd supplies networking equipment and IT infrastructure for businesses, institutions, and professional installations.

For availability, pricing, product specifications, or assistance choosing the right Cambium switch for your network, contact Neriahtech Computers Ltd on +254 113 81 81 82 or email neriahtechcomputers@gmail.com.

You can also follow Neriahtech Computers for product updates and networking solutions on Facebook and Instagram.

Technical Specifications at a Glance

Specifications are based on Cambium Networks’ current EX2000 series documentation and product information.
