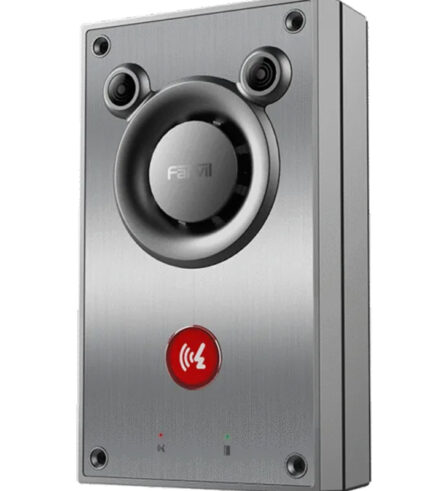

Fanvil A12 Audio Intercom – Rugged SIP Intercom for Access Control, Security and Public Address Systems

Professional Audio Intercom for Demanding Environments

The Fanvil A12 Audio Intercom is a high-performance SIP-based communication device designed for outdoor, industrial, and security-critical environments. Built with a robust stainless-steel panel and aluminium alloy housing, the A12 delivers exceptional durability while offering advanced communication and access control integration features.

Engineered to withstand harsh conditions, the Fanvil A12 features IP66 waterproof protection and IK10 vandal resistance, making it an ideal solution for building entrances, factories, transport terminals, schools, utility stations, and gated communities. Its operating temperature range of -40°C to +70°C ensures reliable performance in extreme weather conditions.

Crystal Clear Audio and Long-Distance Voice Pickup

The Fanvil A12 is equipped with a powerful 10W speaker capable of delivering:

• 90 dB hands-free call volume
• 100 dB broadcast sound pressure level
• Up to 5 metres remote voice pickup range

The dual-microphone array incorporates advanced audio technologies including:

• Acoustic Echo Cancellation (AEC)
• Automatic Noise Reduction (ANR)
• Automatic Gain Control (AGC)
• Automatic Volume Control (AVC)

These features guarantee clear communication even in noisy industrial environments where ordinary intercom systems struggle to perform.

Key Features of the Fanvil A12 Audio Intercom

Rugged Outdoor Design

• IP66 waterproof and dustproof protection
• IK10 anti-vandal construction
• Stainless-steel front panel
• Aluminium alloy housing
• Wide operating temperature range (-40°C to +70°C)

Advanced SIP Communication

• Supports two SIP lines
• IPv4 and IPv6 compatibility
• Full-duplex hands-free communication
• Wideband and narrowband audio codecs
• Secure communication using TLS and SRTP protocols

Flexible Power and Connectivity

• RJ45 10/100 Mbps Ethernet port
• PoE+ (IEEE 802.3at Class 4)
• 12V–24V DC power input
• VPN support including OpenVPN and L2TP
• VLAN support for network segmentation

Integrated Access Control and Security Functions

Perfect for Access Control Systems

The Fanvil A12 is more than just an intercom. It functions as a complete security communication endpoint with:

• Wiegand port for access control integration
• Dual short-circuit inputs and outputs
• Built-in relay for electric locks and barriers
• Active switching output
• Tamper alarm switch
• Wet node alarm output

These capabilities allow installers to integrate the A12 directly into access control systems without additional interface modules.

Security and Surveillance Integration

The intercom supports:

• IP camera video linkage
• Alarm light triggering
• Barrier gate control
• Emergency communication systems
• Security monitoring applications

This makes the A12 an ideal solution for security integrators seeking a dependable SIP communication device.

Public Address and Campus Broadcasting Solution

The Fanvil A12 also operates as a distributed public address system with features including:

• Scheduled MP3 and WAV broadcasting
• Dynamic multicast support
• SIP call forwarding to multicast
• Micro SD card support
• External speaker connectivity through Line-Out interface

Educational institutions, office complexes, factories, and multi-building campuses can deploy the A12 to create efficient and centrally managed paging and announcement systems.

Simplified Deployment and Management

The Fanvil A12 supports a wide range of deployment and management tools, including:

• FTP, TFTP, HTTP and HTTPS auto provisioning
• DHCP Option 66
• SIP PnP
• TR-069 remote management
• Web-based administration
• Firmware upgrades
• Configuration backup and restoration
• Packet capture and system logs
• Voice loop self-check diagnostics

These features significantly reduce installation and maintenance costs across large deployments.

Ideal Applications

The Fanvil A12 Audio Intercom is suitable for:

Building Entrances and Gated Communities

Secure visitor communication and access control management.

Industrial and Manufacturing Facilities

Reliable communication in noisy and demanding environments.

Transport Infrastructure

Ideal for car parks, bus stations, railway terminals and utility installations.

Schools and Campuses

Supports announcements and distributed public address systems.

Government and Public Buildings

Provides secure communication and controlled access.

Why Choose the Fanvil A12 Audio Intercom?

The Fanvil A12 combines durability, superior audio performance, and extensive integration capabilities in a single device. Its industrial-grade design, advanced SIP communication functions, and access control features make it one of the most versatile audio intercom solutions available today.

Whether you need an intercom for a factory gate, a residential entrance, a public building, or a campus-wide broadcasting system, the Fanvil A12 delivers dependable communication and security performance.
