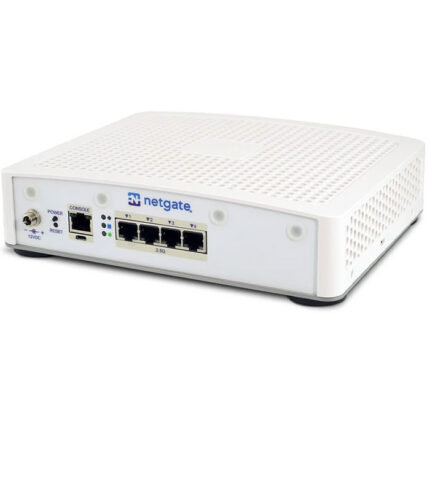

Netgate 4200 MAX pfSense Plus Security Gateway

The Netgate 4200 MAX pfSense Plus Security Gateway is a high-performance firewall, router and VPN appliance designed for professionals, small and medium-sized businesses, branch offices and advanced home networks that need reliable network security without compromising speed. Powered by a 4-core Intel Atom C1110 processor and running pfSense Plus software, the Netgate 4200 MAX combines enterprise-grade security capabilities with flexible 2.5GbE connectivity in a compact, silent desktop form factor.

With four independent 2.5GbE RJ45 WAN/LAN ports, the appliance provides the flexibility required for modern high-speed networks. The interfaces can be configured according to your network architecture, making the Netgate 4200 MAX suitable for single-WAN, multi-WAN, load-balancing, failover and other advanced deployments. Netgate reports L3 routing performance of more than 9.2 Gbps, making this security gateway an excellent choice for demanding internet and internal network environments.

High-Performance Networking with pfSense Plus

At the heart of the Netgate 4200 MAX is a 4-core Intel Atom C1110 processor running at 2.1 GHz, with AVX2 and VAES acceleration. This processing platform enables the appliance to handle routing, firewall rules and encrypted VPN traffic efficiently.

Compared with the previous-generation Netgate 4100, the 4200 platform achieves benchmark results up to three times faster in routing, firewall forwarding and IPsec VPN workloads. This makes it well suited to networks where several security services need to operate simultaneously without creating unnecessary bottlenecks.

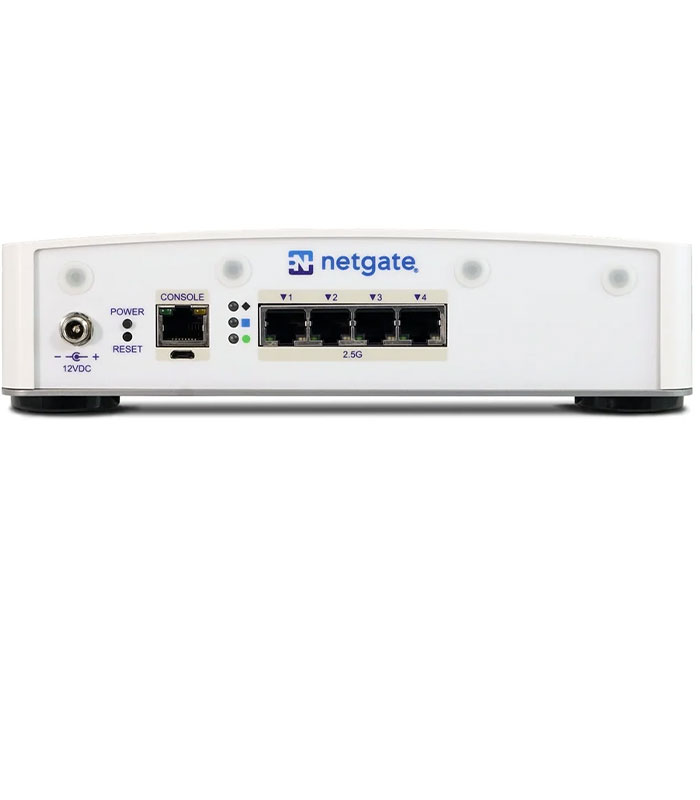

The four network ports are independent and unswitched, allowing administrators to assign them as WAN or LAN interfaces according to their requirements. This flexibility is particularly useful when connecting multiple internet services, segmented networks, security zones or branch-office connections.

Advanced Firewall and Network Security

The Netgate 4200 MAX runs pfSense Plus, a powerful network security platform designed to provide extensive control over firewalling, routing, VPN connectivity and network management.

Administrators can create detailed firewall policies to control traffic between network segments, restrict access to services and establish security rules based on the requirements of an organization. The platform also supports advanced security and network-management functions that can be expanded through compatible packages.

For businesses, this means greater control over how devices communicate with the internet and with each other. It can be deployed as the central security gateway between an internet connection and the internal LAN, helping organizations establish a more structured and manageable network environment.

Fast VPN Connectivity for Remote and Branch Networks

The Netgate 4200 MAX is also designed for high-performance VPN applications. It supports IPsec, OpenVPN and WireGuard, making it suitable for secure site-to-site connections, remote-access deployments and connections between offices or cloud environments.

VPN performance is particularly important for businesses with remote employees, multiple locations or cloud-based infrastructure. The 4200 MAX provides the processing capability needed to encrypt network traffic while maintaining strong throughput.

This makes it a practical solution for organizations looking to securely connect branch offices, remote workers, servers and other network resources without relying solely on basic consumer-grade routers.

128GB NVMe SSD and 4GB LPDDR5 Memory

One of the major advantages of the MAX configuration is its 128GB NVMe M.2 SSD. This provides substantially more storage than the standard Netgate 4200 configuration and is useful for environments that require additional space for logs, snapshots, ZFS boot environments and compatible pfSense Plus packages.

The appliance also includes 4GB LPDDR5 RAM, providing a capable hardware platform for firewalling, routing, VPN services and additional network-management workloads. The combination of fast NVMe storage and modern memory helps make the 4200 MAX a strong foundation for demanding network deployments.

Silent Fanless Operation

The Netgate 4200 MAX uses passive cooling, eliminating the need for conventional cooling fans. This allows it to operate quietly, making it suitable for offices, server rooms, network cabinets and professional home environments where low noise is important.

Its compact desktop enclosure can also be wall-mounted with the appropriate mounting kit, giving installers additional flexibility when deciding where to position the gateway.

Flexible Multi-WAN and High Availability

Modern businesses increasingly depend on reliable internet connectivity. The Netgate 4200 MAX supports multi-WAN configurations, including load balancing and failover, allowing organizations to make better use of multiple internet connections.

For example, a business can connect two internet services and configure the appliance to distribute traffic between them or use one connection as a backup. The platform also supports High Availability, making it possible to design more resilient network architectures where uptime is a priority.

Netgate 4200 MAX Key Features

• 4-core Intel Atom C1110 processor
• 2.1 GHz processor speed with AVX2 and VAES
• pfSense Plus security software
• 4 × independent 2.5GbE RJ45 WAN/LAN ports
• More than 9.2 Gbps L3 routing performance
• Up to 8.75 Gbps L3 forwarding in iPerf3 testing
• Up to 8.61 Gbps firewall throughput in iPerf3 testing with 10,000 ACLs
• Up to 3.20 Gbps IPsec VPN throughput under specified AES-GCM-128 testing
• 128GB NVMe M.2 SSD in MAX configuration
• 4GB LPDDR5 RAM
• Supports IPsec, OpenVPN and WireGuard
• Supports multi-WAN and load balancing
• Supports WAN failover
• Supports High Availability
• Passive cooling for silent fanless operation
• Desktop form factor
• Optional wall-mount installation
• Expandable M.2 architecture
• Designed for professional home, branch, small-business and medium-business deployments

Ideal for Businesses, Offices and Advanced Home Networks

The Netgate 4200 MAX is an excellent choice for organizations that have outgrown basic wireless routers and need greater control over their network security. It can serve as the primary firewall and routing appliance for a small or medium-sized office, branch network, professional home network or edge deployment.

Its combination of 2.5GbE connectivity, powerful processing, pfSense Plus, VPN support and flexible WAN/LAN configuration makes it particularly suitable for modern internet connections where a conventional gigabit router may become a limitation.

Whether you need secure remote access, multiple WAN connections, advanced firewall policies, VPN connectivity or high-speed routing, the Netgate 4200 MAX provides a professional platform for building a robust network infrastructure.

Why Choose the Netgate 4200 MAX?

Choosing the right security gateway is about more than internet speed. A reliable gateway should provide security, flexibility, performance and room for future network growth. The Netgate 4200 MAX brings these capabilities together in a purpose-built appliance rather than requiring a general-purpose PC to be configured as a firewall.

Its four 2.5GbE ports provide significant flexibility, while the Intel Atom C1110 processor delivers the performance required for demanding routing, firewall and VPN workloads. The 128GB NVMe SSD also gives the MAX version additional storage capacity for installations that make heavier use of logs, snapshots and compatible packages.

For businesses and network professionals looking for a dependable pfSense Plus firewall appliance in Kenya, the Netgate 4200 MAX is a powerful option for secure and high-speed network management.
