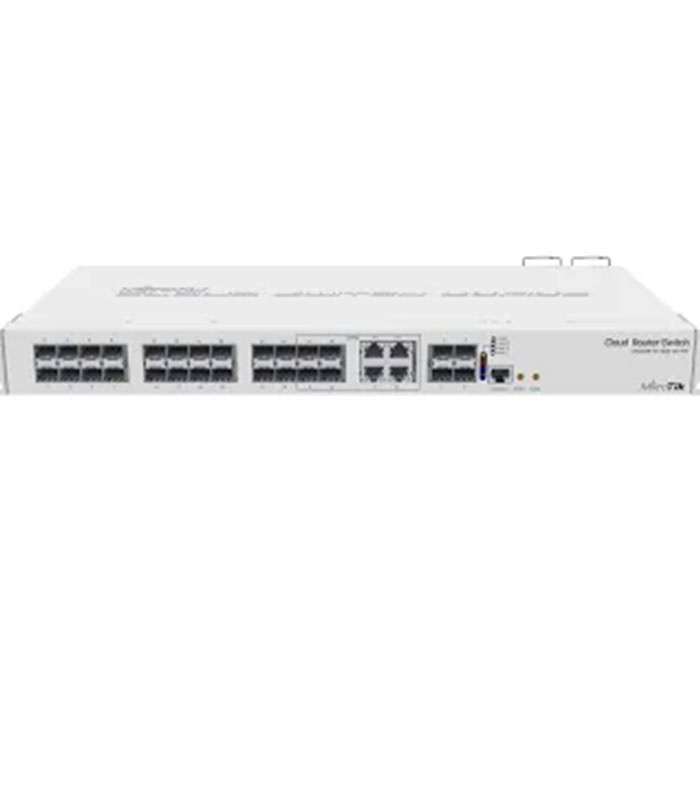

MikroTik CRS328-4C-20S-4S+RM Smart Rackmount Switch

Enterprise-Class Fiber Switching for High-Performance Networks

The MikroTik CRS328-4C-20S-4S+RM is a professional-grade Layer 3 smart switch designed to meet the networking demands of modern businesses, ISPs, enterprise data centers, educational institutions, and large office environments. Built with reliability, flexibility, and performance in mind, this powerful switch combines extensive fiber connectivity, high-speed 10 Gigabit uplinks, and intelligent management features into a compact 1U rackmount chassis.

Whether you are expanding an existing fiber infrastructure or deploying a new enterprise network, the CRS328-4C-20S-4S+RM delivers exceptional switching performance while maintaining the flexibility required for evolving network environments.

Its dual operating system capability allows administrators to choose between the advanced functionality of RouterOS or the simplified management of SwOS, making it suitable for both experienced network engineers and organizations seeking straightforward switch management.

---

Why Choose the MikroTik CRS328-4C-20S-4S+RM?

As network infrastructures continue to grow, organizations require switches capable of handling increasing bandwidth demands while remaining easy to manage and highly reliable. The CRS328-4C-20S-4S+RM addresses these challenges by providing a large number of fiber ports, high-speed uplinks, redundant power supplies, and enterprise-grade software features.

Its flexible port configuration enables businesses to maximize fiber deployment while retaining the convenience of copper Ethernet connectivity whenever needed.

---

Key Features

• 20 dedicated SFP fiber ports
• 4 high-speed 10 Gigabit SFP+ ports
• 4 Gigabit Ethernet/SFP combo ports
• 28 independent switching ports
• Dual boot with RouterOS Level 5 and SwOS
• Dual redundant internal power supplies with automatic failover
• 800MHz CPU for intelligent network management
• 512MB RAM
• 1U rackmount metal enclosure
• RJ45 console port for management and troubleshooting
• Customizable Mode button
• Supports advanced VLAN configuration
• Link aggregation support
• Port isolation and ACL functionality
• STP, RSTP and MSTP support
• QoS traffic prioritization
• Suitable for enterprise fiber aggregation

---

High-Density Fiber Connectivity

Twenty Dedicated SFP Ports

The CRS328-4C-20S-4S+RM provides 20 dedicated SFP ports, making it an excellent solution for organizations deploying extensive fiber optic infrastructure. These ports enable reliable long-distance communication while maintaining high-speed data transmission across campuses, office buildings, warehouses, and metropolitan networks.

The switch supports a wide range of compatible MikroTik and third-party SFP modules, allowing businesses to choose transceivers that best fit their networking requirements.

---

Four 10G SFP+ Ports for High-Speed Uplinks

Modern networks require faster backbone connections to support virtualization, cloud computing, IP surveillance, and high-volume file transfers.

The integrated 4 SFP+ ports provide blazing-fast 10 Gigabit connectivity, ensuring sufficient bandwidth for aggregation switches, servers, storage systems, and core network infrastructure.

These high-speed uplinks significantly reduce network bottlenecks while improving overall performance.

---

Flexible Combo Ports

One of the standout features of the CRS328-4C-20S-4S+RM is its four Gigabit combo ports.

Each combo interface allows administrators to choose between:

• RJ45 Gigabit Ethernet
• SFP Fiber connection

Only one interface from each combo pair is active at a time, providing exceptional deployment flexibility depending on available infrastructure.

Even better, these ports can be controlled through software or RouterOS scripting, allowing administrators to automate which interfaces remain active based on network requirements.

---

Dual Operating Systems for Maximum Flexibility

RouterOS

RouterOS transforms the switch into a powerful Layer 3 networking platform, supporting advanced routing, VLANs, firewall capabilities, QoS, scripting, monitoring, and numerous enterprise networking features.

It is ideal for network professionals requiring extensive control over their infrastructure.

SwOS

For organizations seeking a simpler switching experience, SwOS provides an intuitive web interface focused on switch management.

Administrators can easily configure:

• VLANs
• Port forwarding
• Link aggregation
• Traffic monitoring
• Access Control Lists (ACLs)
• Port mirroring
• Bandwidth control

The Dual Boot feature allows you to select the operating system best suited to your deployment without purchasing additional hardware.

---

Reliable Power Redundancy

Network uptime is critical for every organization.

The CRS328-4C-20S-4S+RM includes dual internal 100–240V AC power supplies with automatic failover.

If one power supply experiences a failure, the second unit immediately continues powering the switch without interrupting network operations.

This redundancy significantly improves reliability for mission-critical applications.

---

Simplified Network Management

Managing enterprise infrastructure becomes easier with several built-in administrative features.

RJ45 Console Port

A dedicated console port allows direct access for:

• Initial configuration
• Firmware recovery
• Troubleshooting
• Diagnostics

Customizable Mode Button

The programmable Mode button can execute custom RouterOS scripts, providing quick access to frequently used administrative tasks.

---

Ideal Applications

The MikroTik CRS328-4C-20S-4S+RM is suitable for numerous networking environments, including:

• Internet Service Providers (ISPs)
• Corporate enterprise networks
• Data centers
• Educational institutions
• Government organizations
• Hospitals
• Security surveillance systems
• Fiber backbone deployments
• Campus networking
• Server rooms

---

Technical Specifications

Model

CRS328-4C-20S-4S+RM

Ports

• 20 × SFP
• 4 × SFP+ (10G)
• 4 × Gigabit Ethernet/SFP Combo

Switching Ports

28 Independent Ports

Processor

800MHz CPU

Memory

512MB RAM

Operating Systems

• RouterOS Level 5
• SwOS

Management

• Web Interface
• Console Port
• RouterOS CLI
• WinBox
• Scripting Support

Power

• Dual Internal 100–240V AC Power Supplies
• Automatic Failover

Form Factor

1U Rackmount

---
